The most accurate north-seeking precision-surveying gyroscope in the World

The GYROMAT instrument series is a range of high precision surveying gyroscopes with band suspension, which are the result of more than 60-years of experience in the development and manufacture of gyroscopic measuring instruments. The fully automatic measuring procedure and measurement technique that have no preliminary orientation provide the greatest accuracy in determining direction in those areas in which other methods cannot be efficiently used, for example in mining and tunnelling.

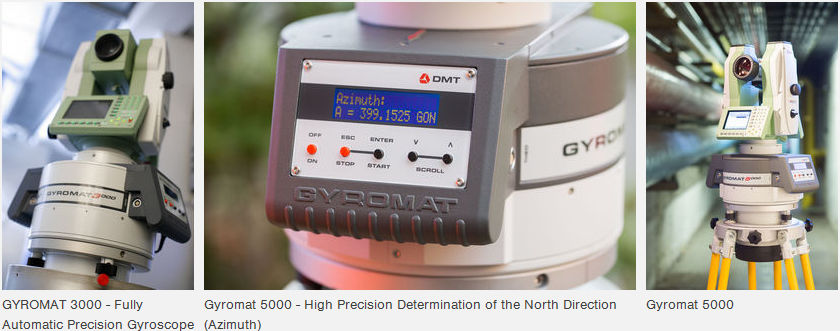

The GYROMAT 5000 is the latest product for high precision direction measurement with an accuracy of 0.8/1000th gon, which corresponds to a deviation in arc of about 1.2 cm over a distance of one kilometer. The time needed for measuring a single direction is only about 6 to 9 minutes. The new piezo drive with a high resolution angle encoder and the new energy concept with a reliable energy storage system and replaceable battery make the system faster, more reliable and easier to maintain. The option to add a theodolite or a total station as required enables the instrument to be used universally for geodetic applications or control work, for example direction measurements under the surface in tunnel surveying or in metrology applications for determination of the geographical north direction.

• Utmost accuracy
• Shorter measuring time
• Fully automatic measurement
• No pre-alignment necessary
• Individual theodolite mounting
• Spare battery

Special Design Features:

• Ergonomic design with rechargeable battery
• More precise piezoelectric drive with high resolution angle encoder
• Gyro measuring system with a reliable intermediate energy storage system
• Wireless remote control and data transfer via Bluetooth®
• Wired interfaces (USB / RS- 232) for control and data transfer
• Menu-driven measuring sequence
• Advanced monitoring
