V.S. 苏州茂海 大中华区独家授权总代理
苏州茂海公司2015年12月正式获得美国Metraflex公司在中国大陆及香港地区的独家授权总代理资质(可提供官方授权代理证书)，全面负责其补偿器、膨胀节、止回阀等全系管阀产品在中国区的市场推广、销售及技术售后服务。欢迎广大中间商或用户来电咨询。
>> 咨询热线： 0512-67901870-820, 联系人：李先生 业务QQ：595348090， chris@moresea.com
关键词: Metraflex膨胀节, Metraflex补偿器, Metraloop, Fireloop, Flexicraft, Stayflow过滤 器, Hosecraft
Metraflex… For pipes in motion
美国Metraflex公司成立于1958年，至今已逾60年。作为全球管道控制系统知名厂商，Metraflex一直致力于为商用 HVAC 行业提供广泛的管道控制产品，用于振动隔离、降噪、热膨胀和收缩、管道定线和地震运动、泵连接及流量调节等领域，在北美及全球市场享有盛誉。

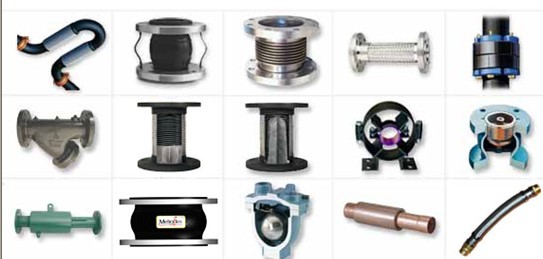

Metraflex研发生产各类高等级工程管道产品，包括伸缩接头、膨胀补偿装置、穿墙密封件、管道导管、泵接头、过滤器、阀门等，为商业 HVAC 行业提供最广泛的管道产品。我们还创新性研发出了用于应对热膨胀及地震运动的Metraloop系列环形膨胀节，Cablesphere系列球形膨胀节，SDF和Vaneflex系列流量调节接头产品，也包括具有UL认证、FM认证的Fireloop系列环形膨胀节。
Metraflex在全球各地拥有专业销售代表机构，可随时给您的管道应用和安装提供帮助。同时，Metraflex技术支持团队还可根据您的特别应用和具体需求提供产品定制。每一个管道工程系统都需要对噪音、振动、位移以及管道定线进行补偿，Metraflex 专业全面的解决方案可最大程度保护您的管道系统并使其工作更具效率。
美国Metraflex中国办事处位于极富创新竞争力的美丽的苏州工业园区。作为Metraflex大中华区独家授权总代理，苏州茂海机电设备有限公司经验丰富的技术团队将为您提供专业的技术支持以及Metraflex全面管道系统解决方案，包括授权代理集团旗下flexicraft, stayflow, hosecraft等全系产品。
Metraflex... For pipes in motion
Vibration isolation. Noise dampening. Thermal expansion and contraction. Pipe alignment and seismic movement. Pump connections and flow conditioning. Metraflex has been supplying piping specialty products to the commercial HVAC industry since 1958.

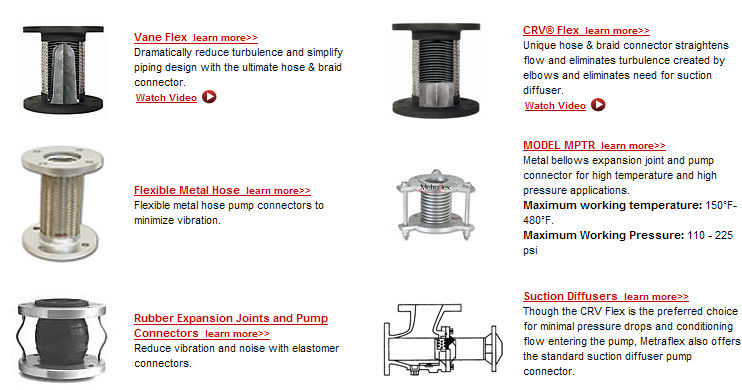

Manufacturers of the innovative Metraloop® expansion loop for thermal expansion and seismic movement, the Cablesphere® expansion joint, and the CRV® Flex™ and VaneFlex™ flow conditioning joints, Metraflex makes a variety of engineered piping products including expansion joints, expansion compensators, flow meters, wall penetration seals, pipe guides, pump connectors, strainers, valves and more.
In a hurry? Need a hard-to-find- size? Metraflex has one of the most extensive offerings of piping products for the commercial HVAC industry.
Metraflex has representatives across the country and around the world with the expertise to help you with your application or installation.
In addition, Metraflex's technical support staff can help you with special applications, tailoring our line of products to your specific needs.
Every engineered pipe system needs to compensate for noise, vibration, movement and piping alignment. Metraflex has the products you need to protect your piping and make it more efficient.
美国Metraflex Company成立于1958年，重要生产Metraflex 膨胀节、管道控制、隔音以及减振设备的制造商，在北美享有盛誉，最初主要集中在HVAC系统，现在已广泛应用于化工，医药，食品，天然气和能源等领域。其特殊制造的阀门，流量计等管件产品行销世界各地，拥有FM消防认证和ABS等船级认证。如有任何疑问和需求Metraflex膨胀节Metraflex 补偿器Metraflex阀门，请联系中国区独家授权总代理苏州茂海公司。
|
苏州茂海公司 中国区核心代理商 sales@moresea.com, 0512-66186799
Double Disk Check Valve
METRAFLEX
PART NO. |
Pipe Size |
A (in) |
B (in) |
C (in) |
Pressure/Temp |
Weight (lbs) |
CV |
Bolt Size |
|
| Inch |
mm |
150°F |
200°F |
| CVXXK0200 |
2" |
50 |
4 |
1-3/4 |
1/4 |
200 PSI |
190 PSI |
3 |
48 |
5/8" |
| CVXXK0250 |
2.5" |
65 |
4-3/4 |
1-7/8 |
5/8 |
200 PSI |
190 PSI |
5 |
99 |
5/8" |
| CVXXK0300 |
3" |
80 |
5-1/4 |
2-1/2" |
1/2 |
200 PSI |
190 PSI |
8 |
171 |
5/8" |
| CVXXK0400 |
4" |
100 |
6-3/4 |
2-1/2" |
1-1/8 |
200 PSI |
190 PSI |
13 |
290 |
5/8" |
| CVXXK0500 |
5" |
125 |
7-5/8 |
2-3/4" |
1-3/8 |
200 PSI |
190 PSI |
16 |
489 |
3/4" |
| CVXXK0600 |
6" |
150 |
8-5/8 |
3" |
1-5/8 |
200 PSI |
190 PSI |
20 |
695 |
3/4" |
| CVXXK0800 |
8" |
200 |
10-7/8 |
3-1/2 |
2-7/8 |
200 PSI |
190 PSI |
38 |
1789 |
3/4" |
| CVXXK1000 |
10" |
250 |
13-1/4 |
4-1/2" |
3 |
200 PSI |
190 PSI |
57 |
2557 |
7/8" |
| CVXXK1200 |
12" |
300 |
16 |
4-1/2" |
4-5/8 |
200 PSI |
190 PSI |
93 |
4287 |
7/8" |
| CVXXK1400 |
14" |
350 |
17-5/8 |
5 |
5 |
150 PSI |
135 PSI |
121 |
5456 |
1" |
| CVXXK1600 |
16" |
400 |
20 |
5-1/2 |
5-3/4 |
150 PSI |
135 PSI |
165 |
7342 |
1" |
| CVXXK1800 |
18" |
450 |
21-1/2 |
6 |
6-3/8 |
150 PSI |
135 PSI |
223 |
9532 |
1-1/8" |
| CVXXK2000 |
20" |
500 |
23-3/4 |
6 |
7-1/8 |
150 PSI |
135 PSI |
245 |
12000 |
1-1/8" |
Metraloop® expansion joints for thermal expansion applications
Seismic, thermal and building movement expansion joint
Pipes transporting hot or chilled water, steam and chemicals are all subject to varying internal temperatures — as well as significant thermal expansion. While a flexible stainless steel hose and braid assembly is excellent for absorbing lateral offset and angular movement, it’s not designed for axial compression or torque. Under compression, the braid is relaxed and its pressure rating lowered, while torque introduces complex stresses that quickly fatigue the hose.
If flexible hose and braid are to be used as the stress-relieving, movement-compensating component of a piping system, it must be installed in a configuration that minimizes axial compression.
 That’s where the Metraloop joint comes in. Made of flexible stainless steel hose and braid, it accommodates lateral offset and angular movement. In a pipe run with axial expansion and contraction, a Metraloop installed in a hanging down configuration with its legs perpendicular to axial movement (Figure 1) can flex laterally. As long as the legs are designed with sufficient live length, the offset amount never exceeds the elastic limit of the hose, enabling it to flex indefinitely.
Compare that to the “L” shaped configuration of hose and braid (Figure 2). One leg of the assembly is always subjected to axial force (except in a chilled water application, where the pipe is contracting). In addition to being less reliable, the “L” shaped configuration has an offset pipe that costs more and is more difficult to fit than Metraloop.
Compared to conventional bellows-type expansion joints and hard pipe loops, Metraloop exerts a fraction of the anchor load, requires far fewer pipe guides, and takes less space – all significantly reducing overall project costs.
There’s no limit to the thermal applications that Metraloop can handle. It can even be designed with lined hose for high velocity, double-braid for high pressures, and all stainless steel construction for media compatibility.
|
|
|
